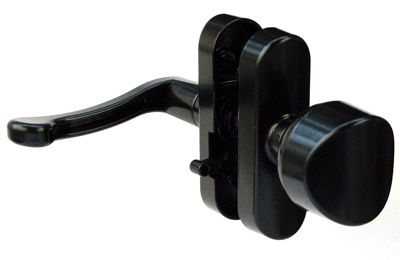

| #1319 Universal Knob Latch |
| |
|
|
| |
| |
| |
| |
- Model: #1319 Universal Knob Latch
- Size: 1-3/4" (44.5 mm) installation hole spacing
- Materials: Sturdy zinc alloy die cast construction
- Origin: Taiwan
- Fit for aluminum, wood or metal screen, storm, jalousie or interior doors
- For outswiniging wood, metal or vinyl doors 1-1/4" thick or above
- Plastic spacers
- Smooth contours and ergonomic design
- Heavy-duty smooth operation
- Added security with interior blocking mechanism (only interior)
- Durable finish for a lifetime of use
- Features an inside locking mechanism for added security
- "Anti Lock Out" feature prevents accidental lock out
- Has spring loaded strike
- Color and Package available: Upon request
- Deluxe painted or anodized finishing
- High quality and competitive prices
- We excel at producing all kinds of Builder's , such as Door Closer, latch, hinge, mailbox, door lock,etc.
We have the most popular design and the most reasonable price, the quality is reliable.
We can also make the products in strict confirmity with your samples.
Inquiries are welcome.
|
Installation on new door
A. Position latch - Maintain clearance with entrance door knob
B. Mark hole locations using template provided and drill two 5/16" holes. One 3/8" hole.
C. Insert Drive spindle into center hole of latch.
D. Install strile on jamb.
Replacement of existing latch
1. Use existing latch holes if they match the template provided. If it's necessary to drill new holes make sure that the handle cases will cover existing holes.
2. Follow step C and D above.
Door Thickness |
Screws |
Drive Spindle |
<1"
( <2.5 cm ) |
1-1/4"
3.2 cm |
2-5/16"
2.3 cm |
1-1/2"
( 2.5~3.8 cm ) |
1-3/4"
4.4 cm |
2-3/4"
7.0 cm
(have to cut the spindle) |
1-1/2~2"
(3.8 ~ 5.1 cm) |
2-1/4"
5.7 cm |
3-5/16"
8.4 cm |
|
|
